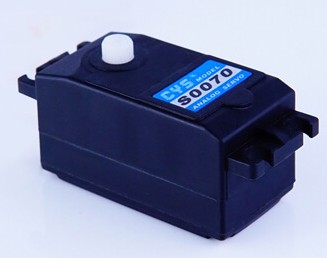

CYS 7.5kg Analog Plastic Gear Retract Servo

Type: Analog
Weight: 30g plus/minus 1g
Size: 44.1 L x 23 W x 24.4mm H
Control System: (+)Pulse Width Control 1500 micro sec Neutral
Operating Voltage: 4.8 to 6.0Volts
Operating Temperature Range: -10 to 50deg Celcius
Operating Speed (6.0V): 0.4sec/60deg at no load
Operating Speed (7.4V): 0.35sec/60deg at no load
Stall Torque (6.0V): 7.0kg.cm
Stall Torque (7.4V): 7.5kg.cm
Operating Angle 45deg.one side pulse traveling 500 micro sec
Direction: Anticlockwise/Pulse Traveling 1000 to 2000 micro sec
Current Drain (6.0V): 20mA/idle and 200mA no load operating
Current Drain (7.4V): 20mA/idle and 260mA no load operating
Stall Current: 0.8A/0.9A
Dead Band Width: 4 micro sec
Motor Type: Iron core
Bearing Type: Ball bearing
Horn gear spline: 25T
Gear Type: Plastic
Connector Wire Length: 300mm plus/minus 5mm
Wire info: Brown/Black = Negative
Red: Positive
Orange/White: Signal
