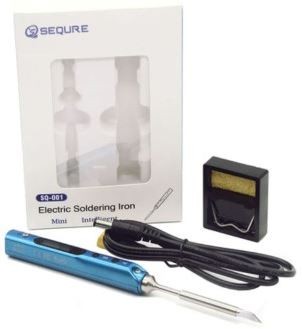

Mini SQ-001 65W Portable Soldering Iron

Lightweight design, easy to install and use, easy to remove and store, comfortable control handle, high-efficiency heating end, simple control interface. It is a favorite tool for electronic engineers and electronic maintenance enthusiasts.
It can work in DC 12-24V. OLED screen display, key temperature adjustment, external independent power supply. In DC 19V 40W state, 15 seconds temperature rise to 300 ℃.
Mini Soldering Iron Controller:
SQ-001 is based on 304 stainless steel nested ABS + PC shell, Integrated special power interface, Safety circuit design, Antistatic structure.
The perfect combination of embedded STM32 processor, dual temperature sensor and acceleration transmitter.
Make SQ-001 realize intelligent temperature control between 100-400 degrees, more stable temperature, instantaneous temperature rise, automatic sleep, over temperature alarm and other functions.
Mini Soldering Iron Heating end:
The heating end adopts internal heating core
Factory preset temperature: 300 ℃
Temperature stability range: ± 2%
External independent power supply: DC 5525 power interface, suitable for DC 12-24v notebook power supply, vehicle power supply and mobile power supply.
Micro USB interface: set temperature rise curve, user defined function key and firmware upgrade function through parameter file.
Additional functions: Application layer open source design. You can change the internal parameter settings according to your own needs to meet more and more performance needs of different customers.
Safety Instructions:
1. Please use ground clamp, proper power supply and other accessories
to ensure safe use.
2. When SQ-001 is used for the first time, it may slightly smoke due to
heating of electric heating element, which is normal Phenomenon.
3. If SQ-001 is used continuously for more than 350 ° C for 40 minutes,
the handle temperature of soldering iron will reach 50°C~60°C.
4. When SQ-001 temperature rises, do not contact the iron head to avoid
scalding.
5. When SQ-001 is powered on, the iron head cannot be replaced.
INCLUDED:
1 x SQ-001 Controller
1 x Solder Tip TS-I
1 x Safety Instructions
1 x Hex Key
1 x User Manual
1 x DC5525 to XT60 Power Cable
1 x Mini-bakelite Stand Holder
