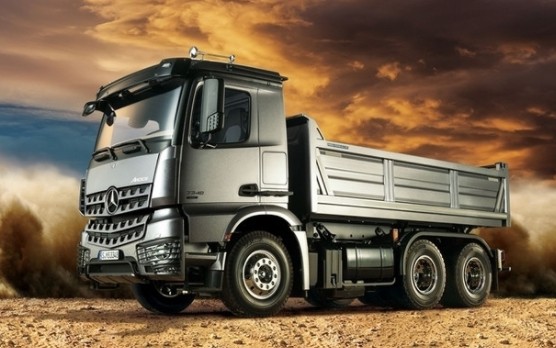

Tamiya R/C 1/14 MERCEDES-BENZ AROCS 3348 6X4 TIPPER TRUCK

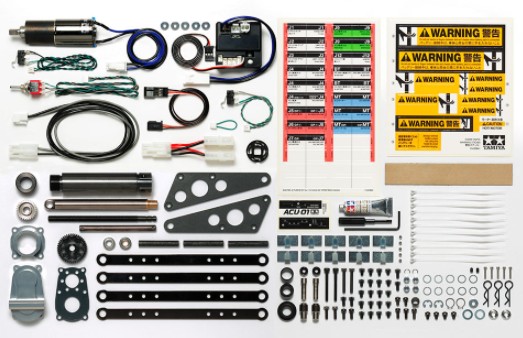

Note: This truck must be assembled and painted.

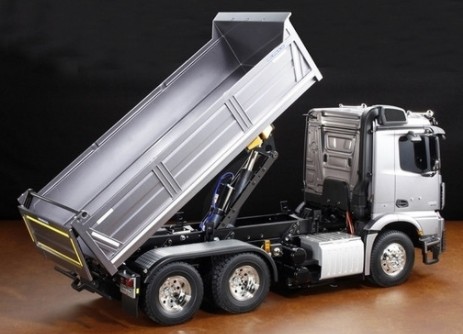

This is a highly accurate 1/14 scale radio control model that recreates the Mercedes-Benz Arocs dump truck. It features a highly realistic truck bed section behind the cab which can be operated by the radio transmitter, using the separately-sold Actuator Set (Item TAM56545)
The model's ladder frame chassis features aluminium side channels with resin cross members and is equipped with a highly realistic suspension utilizing metal leaf springs and friction dampers.
A front-mounted motor and 3-speed transmission power the two rear wheel axles, which are fitted with built-in differentials to enable smooth cornering.
REQUIRED TO COMPLETE:
4-channel Radio System
The Multi-function unit that allow you to drive the vehicle and experience realistic lights, sounds and vibrations (TAM56545)
SPECS:
Length: 576mm,
Width: 190mm,
Height: 267mm,
Weight: Approx. 4.3kg (*with R/C equipment and battery pack attached)
Wheelbase: 257mm+103mm
Tread: 156mm (Front), 138mm (Rear, Double Tire)
Chassis: Aluminum and Polycarbonate Resin Ladder Frame
Suspension: Front/Rear Leaf Springs
Caster Angle: 0° (Front and Rear)
Camber Angle: 0° (Front and Rear)
Toe Angle: 0° (Front and Rear)
Dampers: Front/Rear Aluminum Friction Dampers
Drivetrain: Rear 2-Axle Drive
Transmission: 3-Gear Transmission (gear shifting operated from transmitter)
Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
Diff Gear: 3-Bevel Diff.
Motor: TR Mighty-Tuned (35T)
Tire Width/Diameter: 22/83mm (Front), 22/84mm(Rear)
