EV-Peak C1-XR Balance Charger/Discharger

Please Note: This Charger comes standard with just one Deans Battery Connector. Optional Charging Lead Bundles is available (Part Numbers: K107 and XPCTD)

EV-Peak C1-XR AC/DC 10A Multi Function Intelligent Balance Charger/Discharger

Like the “carbon” element is the fundamental component of life,C Series are the first round intelligent balance chargers which are designed for worldwide RC hobby users,they form the basis of the following balance chargers of EV-PEAK. It adopts the 32-bit MCU instead of common 8-bit MCU,makes operation faster and more accurate.

The EV-Peak C1-XR charger is a basic AC/DC balance charger/discharger,it supports 1-6 cells LiPo/LiHV/LiFe batteries and 1-15 cells NiMH/NiCd batteries,maximum 10A charge.

SPECS:

AC Input Voltage: 100-240V

DC Input Voltage: 11-18V

Charge Power: 100W

Charge Current: 0.1-10.0A

Discharge Power: 5W

Discharge Current: 0.1-2.0A

Balance Current: 400mA

LiPo/LiHV/LiFe Battery Cell Count: 1-6S

NiMH/NiCd Battery Cell Count: 1-15 Cells

Pb Battery: 2-20V

Dimensions: 130 x 115 x 61mm

Weight: 380g

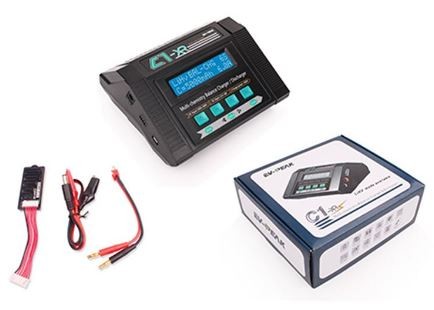

Included:

1 x Charger

1 x Charger Balance Board

1 x Charger Output Cable (Deans Connector only)

1 x 12v Charger Input Cable with Crocodile Clamps

1 x 220v Charger Input Cable
