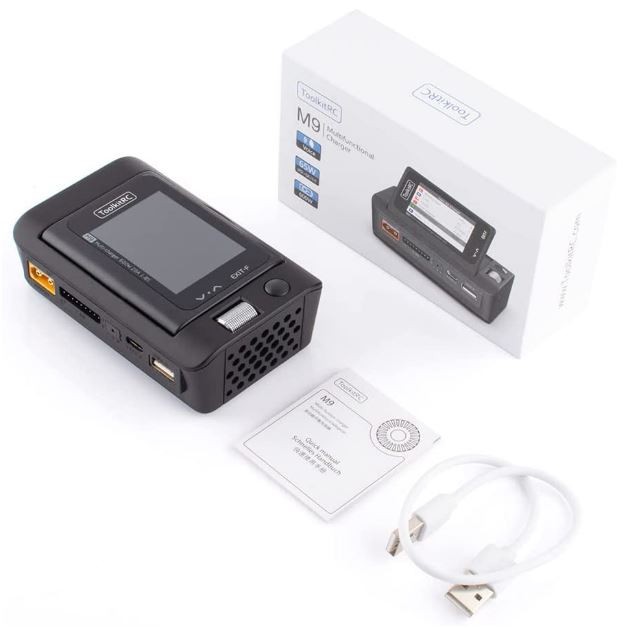

M9 600W USB-C USB-A Fast Charing DC Smart Charger Adjustable Screen Angle with Audio Function for 1-8S Lipo LiHv Life Battery

Features and Specs:

Features:

Customizable voice sound files and Start-up screen

High charging power: 600W 2-8S Capable

2.4″ colour flip screen for wide viewing angle

Dual USB Fast Charging

Balance charging

Digital signal generator/detector for testing

Battery voltage checker

Watt meter

Specs:

USB-A and USB-C Outputs: 5-20V@65W PD QC PPS AFC SCP

Power supply: 1.0-20A@1-35V mode: CC+CV

Signal Tester:

SBUS: 880-2200us*16CH @20-100Hz

PPM: 880-2200us*8CH @20-50Hz

PWM: 880-2200us @20-400Hz

Signal Generator:

SBUS: 880-2200us*16CH @74Hz

PWM: 500-2500us @20-1000Hz

PPM: 880-2200us*8CH @50Hz

Battery Type: LiPo LiHV LiFe Lion LTO@1-8S

Discharging Power:

0.1-20A@600W Recycle External

0.1-3A@20W Normal Mode

Charging Power: 0.1-20A@600W

LCD: 2.4*IPS RGB 320*240 Pixel

Balance Current: 1000mA@4.2V

ESC: 1-20A@1-35V MAX 600W

NiMh @1-20S Pb @1-10S

Voltage: 1.0V-5.0V@1-6S

Input: 7-35V@MAX35A
