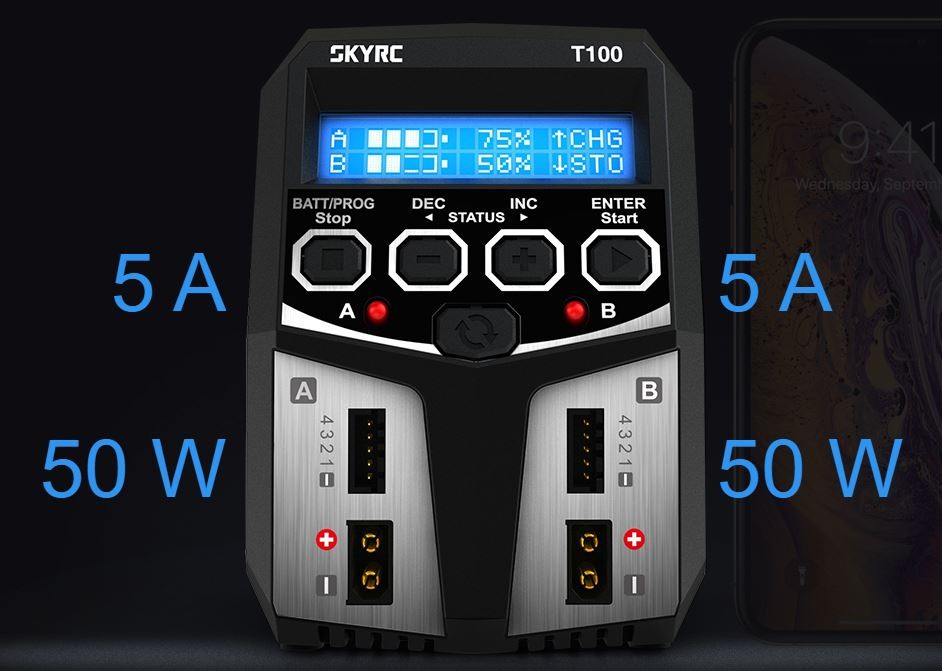

SkyRC T100 Dual Output Charger

SkyRC T100 is a twin-channel charger with two independent circuits which can charge batteries of varying chemistries (LiPo / LiFe / Lilon / LiHV / NiMH / NiCd / Pb) simultaneously.

Its sleek design allows easy front-loading plug-in convenience of balancing and XT60 ports. It is not only compact in size but also powerful in output with maximum 100W charging power and 5A charging current which makes charging more sufficient. With the new AGM and cold charge modes, the user is free to charge their PB and AGM batteries in cold days.

Twin-channel Charger:

SkyRC T100 allows you to plug 2 batteries into one charger simultaneously, and it will intelligently and automatically initiate the charging of 2 batteries at once to their maximum capacity. To top it all, the batteries being charged do not even need to have the same configuration. You can connect different chemistry(NiMH / NiCd / LiPo / LiFe / Lilon / LiHV / Pb)batteries into any of the charging ports.

Specs:

Twin-channel charger with two independent circuits which can charge batteries of varying chemistries (LiPo / LiFe / Lilon / LiHV / NiMH / NiCd / Pb) simultaneously.

For Pb battery, AGM Charge and Cold Charge mode are available.

Size and Weight:

Case Material: Plastic

Case Size: 90x100x127mm

Weight: 500g

Display:

Type: 2x16LCD

Display Backlight: Blue

Power:

Input Voltage: AC 100-240V

Charge Wattage: 50Wx2

Battery Types/Cells:

LiPo/LiFe/LiIon/LiHV: 2-4 cells

NiMH/NiCd: 6-8 cells

Pb:6/12V

Battery Capacity Range:

LiPo/LiIon/LiFe/LiHV:100-50000mAh

NiMH/NiCd:100-50000mAh

Pb: 100-50000mAh

Charge Voltage:

LiPo: 4.18-4.25V/cell

LiFe: 3.58-3.7V/cell

LiIon: 4.08-4.2V/cell

LiHV: 4.25-4.35V/cellNiMH/NiCd: Delta peak detection: 3-15mV/cell ; Default: 4mV/cell

Charge Current: 0.1A-5.0A

Balance Cells: 2-4 cells

Balance Current: 300mA/cell

Safety Timer: 1-720minutes and OFF

Charge Method:CC/CV for Lithium batteries.

Delta-peak Sensitivity for NiMH/NiCd batteries.

CC/CV and float charge for PB batteries.
