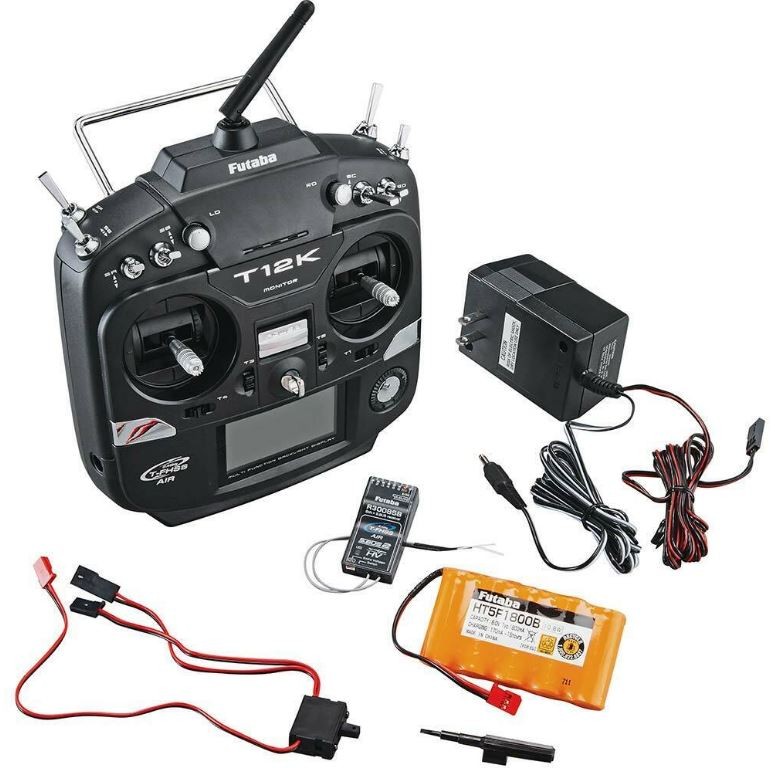

Futaba 12K T-FHSS Radio w R3008SB Receiver
The 12K combines first-class performance with incredible versatility to create a system that's easy to operate, yet feature-packed! Available in systems perfectly matched for airplanes, helis and gliders, the 12K is also compatible with multi-rotors, so pilots get the best of all worlds.
Equipped with the rock-solid Futaba S-FHSS and T-FHSS protocols, the 12K is compatible with almost a dozen different Futaba receivers to suit modelers' needs. The 12K can transmit and receive telemetry data via the T-FHSS protocol. Simply install Futaba telemetry sensors (sold separately) to monitor flight data, receive alerts while in flight and more. These sensors allow pilots to keep track of battery voltage, altitude, speed and other key flight functions.
In addition to telemetry, the 12K can be used with S.Bus2 gear to add multiple servos, gyros and more to set-ups with fewer cables. Pilots with non-telemetry set-ups can take advantage of the interference-free S-FHSS protocol. A large, backlit LCD screen, expandable 30-model memory, a 6V 1800mAh NiMH battery and charger are just a few more of the features the 12K has to offer.
Choose from airplane and heli 12K systems with the R3008SB telemetry receiver included. FPV/drone pilots will appreciate the lightweight, compact R3001SB FPV drone receiver optimized for their applications.
TX FEATURES:
Channels: 14 (12 proportional, 2 switched)
Compatible with T-FHSS and S-FHSS protocols
Six 3-position switches, two 2-position switches, two slider levers, two rotary dials, four digital trims and two push buttons for quick, easy access
Headphone plug, trainer port and S.Bus plug-in
S.Bus2 system allows multiple servos, gyros and telemetry sensors with a minimum number of cables
Model types: six types of main wing with three tail types for airplanes, six swash types for helis and multi-rotor functions
Improved stick feel with adjustable lengths and tension
Dual rates/exponential
Included 6V 1800mAh NiMH battery and charger
Large, backlit LCD screen with adjustable contrast for easier reading. Push/dial operation simplifies set-up
Micro memory card slot for storing model information and free system updates. (SD-32MB to 2GB; SDHC-4GB to 32GB, not included)
Vibration feature alerts pilots to various alarms and timers, in addition to sound
10-character model naming
Expandable 30-model memory
5 flight conditions (Helicopter and Glider model selections)
5 customizable programmable mixes
Servo test and servo position display
Fuel mixing
Stick calibration
Servo speed
Logic switching
AIRPLANE FEATURES:
6 wing types
3 tail wing types
5 flight modes
Pitch curve
Throttle curve
Throttle delay
Aileron differential
Flap setting
Aileron to camber flaps
Aileron to brake flaps
Aileron to rudder
Rudder to aileron
Camber mix
Elevator to camber
Camber flap to elevator
Butterfly function
Trim mix
Air brake
Gyro mix
V-Tail
Ailevator (dual elevator)
Winglet
Motor speed
Rudder to elevator
Snap roll
Multi-engine functionality
Airbrake
HELICOPTER FEATURES:
Six swash types
Pitch curve and pitch trim
Throttle curve and throttle hover trim
Throttle hold
Swash ring
Pitch to needle
Pitch to rudder (revolution mixing)
Gyro mixing
Governor mixing
Timer settings
Throttle percent timer
Glider Features:
Glider-specific functions
6 wing types
3 tail wing types
Multirotor Features:
Throttle stick position warning
Gyro Sense
Flight Mode
Throttle Curve
Throttle Delay
R3008SB RECEIVER FEATURES:
T-FHSS protocol
Dual Antenna Diversity
S.Bus/S.Bus2 ports (S.Bus2 port for bidirectional telemetry sensors)
8-channel PWM conventional ports
High voltage
Battery fail-safe
External voltage port: 0-70V DC
Power requirement: 4.8-7.4V
Dimensions: 0.98 x 1.86 x 0.56 in (24.9 x 47.3 x 14.3 mm)
Weight: 0.36 oz (10.1 g)
R3001SB RECEIVER FEATURES:
T-FHSS protocol
Dual Antenna Diversity
S.Bus/PWM and S.Bus 2 ports (S.Bus 2 port for bidirectional telemetry sensors)
High voltage
Battery fail-safe
Power Requirement: 4.8-7.4V
Dimensions: 0.83 x 1.65 x 0.21 in (21.1 x 41.8 x 5.3 mm)
Weight: 0.15oz (4.2 g)
