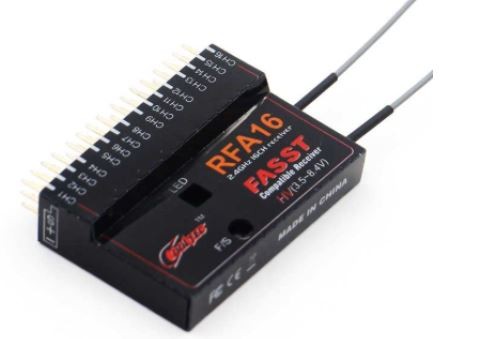

Futaba compatible - Cooltec RFA 16ch FASST Receiver

INTRO:

Cooltec 2.4GHz Spread Spectrum FASST Compatible Receiver is designed to use with FUTABA FASST 2.4GHz Air System(7CH Mode/Multi Molde), such as TM7, TM8, TM10, TM14 or T6EX-2.4G, 7C-2.4G, 8FG, 10CG, 12FG , 14MZ, 14SG, 18MZ.

SPECS:

Operating Voltage Range : 3.5~8.4V

Dimension:46.7X14.6X36.8mm

Weight:17g

Latency:14ms(LS) :7ms(HS)

Sensitivity:about -96dBm

BINDING PROCEDURE:

Turn on the transmitter, get to the LINKAGE MENU - SYSTEM and select FASST-7CH or FASST- MULT, Connect battery to the receiver while holding the F/S button on the receiver, the red LED on the receiger is off and green LED constant on indicates binding successfully.

SETTING FAILSAFE:

RFA16 support two delectable failsafe setting options, either use native failsafe position preset on transmitter, or set failsafe on RFA16.

1) Use native failsafe position preset on the transmitter side:

If not disabling failsafe on the transmitter side, RFA16 will use native failsafe position preset on the transmitter side.

2) Set failsafe on RFA16:

RFA16 supports failsafe function for all trannels. Follow the steps below to set failsafe positions for each channel.

(1) Bind the receiver first and disable failsafe on the transmitter side;

(2) Set all transmitter controls to the desired failsafe position;

(3) Press briefly the F/S button on the receiver(less than 1 second), the green LED will flash twice, indicating the failsafe is set up successfully;

(4) To disable the failsafe fuction, just need to rebind the receiver.

HOW TO SWITCH BETWEEN LS AND HS MODES:

Turn the transmitter off, connect the battery to the receiver, press the F/S button of receiver for 6 seconds and then release. The red LED will flash fast in HS mode and slow in LS mode. Reapeat this to alternate modes.
