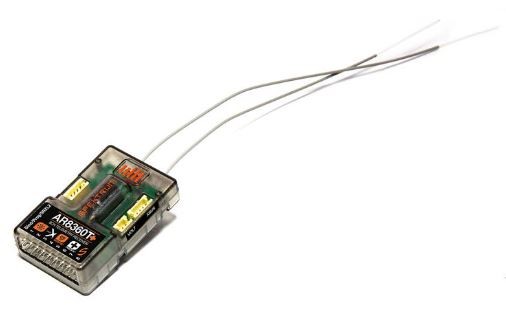

Spektrum AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver
The Spektrum™ AR8360T+ 8-Channel AS3X+/SAFE Telemetry Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. The AR8360T+ is a full-range 8-channel receiver with built-in AS3X+® and SAFE® stabilization. The all-new AS3X+ stabilization algorithm creates better flight performance, increased sensor accuracy, data rate, and provides pilots with a generationally different feel compared to AS3X. There is no delay in control response or limits on control throws. You’ll simply feel like you’re flying an expertly tuned model that does exactly what you want.
IN THE BOX:
(1) AR8360T+ DSMX 8-Channel AS3X+ and SAFE Telemetry Receiver
(1) Product Manual
NEEDED TO COMPLETE:
(1) Spektrum Telemetry Capable Transmitter
Spektrum AR8360T+ DSMX 8-Channel AS3X+ and SAFE Telemetry Receiver
OVERVIEW:
The AR8360T+ features a full-range telemetry and integrated barometer to provide altitude and vario telemetry data without additional purchase. Included XBUS and temperature ports can be used to add additional telemetry sensors available separately. It also features an SRXL2 port for an SRXL2 Remote Receiver (SPM9747 or SPM4651T), available separately, to add additional RF path redundancy. An SRXL2/Bind/Program/Batt servo header is available to connect Smart devices, program and update the receiver, bind with a traditional bind plug, or connect a battery. The AR8360T+ also features a bind button for easy binding with no plugs necessary and offers both SmartSafe™ technology and Hold Last, as well as preset failsafe types set through forward programming.
Please Note:
The DX7S and DX8 Gen 1 Spektrum Transmitters will not display Altitude or Variometer telemetry with the AR8360T receiver.
These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, Non-computer transmitters.
Using this receiver in turbine powered aircraft models is not recommended.
Spektrum AR8360T+ DSMX 8-Channel AS3X+ and SAFE Telemetry Receiver Features
Bind button allows for easy binding and eliminates the use of bind plug
Two external antennas will ensure secure RF coverage from all angles of the aircraft
Additional RF path redundancy with an additional SRXL2 Remote Receiver (sold separately)
End pin output pins for easy and compact installation
AS3X+ and SAFE set up through forward programming directly from your Spektrum transmitter*
Ready to use with Spektrum Smart ESCs for one-wire telemetry data without the need of modules, links and wires
Forward Programming capable for setting individual failsafe parameters per channel and more
