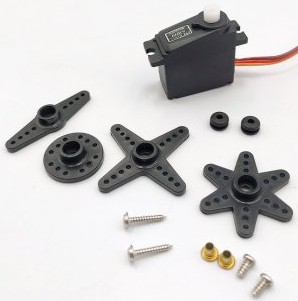

CYS 17g Digital Metal Gear Servo

Type Digital

Weight 23g±1g

Size: 37.6*13.3*33.8mm

Control System (+)Pulse Width Control 1500usec Neutral

Operating Voltage 4.8-6.0V

Operating Temperature Range (-)10 to +50 °

Operating Speed (4.8V) 0.13sec/60°

Operating Speed (6.0V) 0.09sec/60°

Stall Torque (4.8V) 2.5kg.cm

Stall Torque (6.0VV) 3.0kg.cm

Operating Angle 45deg.one side pulse traveling 500 usec

Direction Anticlockwise/Pulse Traveling 1000~2000usec

Current Drain (4.8V) 20mA/80mA

Current Drain (6.0VV) 20mA/80mA

Stall Current 1.2A/1.5A

Dead Band Width 3usec

Motor Type Iron core

Bearing Type /

Horn gear spline 25T

Gear Type Metal

Connector Wire Length 180mm

Wire info:

Brown/Black = Negative

Red = Positive

Orange/White = Signal
