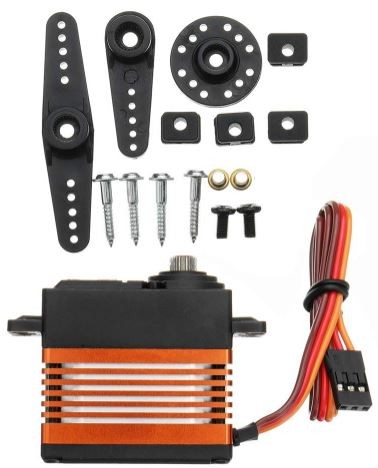

CYS 20kg Digital Servo (Metal Gears)

FEATURES:

With high precision steel gear

IP 65 Waterproof

Coreless motor

20Kg high torque for

SPECS:

Type Digital

Weight: 64g±1g

Size: 40.1*20.1*38.8mm

Control System: (+)Pulse Width Control 1500usec Neutral

Operating Voltage: 6.0~7.4Volts

Operating Temperature Range: (-)10 to +50 degree C

Operating Speed (6.0V): 0.16sec/60° at no load

Operating Speed (7.4V): 0.14sec/60° at no load

Stall Torque (6.0V): 18kg.cm

Stall Torque (7.4V): 20kg.cm

Operating Angle: 45deg. one side pulse traveling 500 usec

360 Modifiable: No

Direction: Anticlockwise/Pulse Traveling 1000~2000usec

Current Drain (6.0V): 20mA/idle and 100mA no load operating

Current Drain (7.4V): 20mA/idle and 150mA no load operating

Stall Current: 2.5A/2.8A

Dead Band Width: 2usec

Motor Type: Coreless motor

Bearing Type: Ball bearing

Horn gear spline: 25T

Gear Type: Titanium

Connector Wire Length: 300mm±5mm

Wire info:

Brown/Black = Negative

Red = Positive
