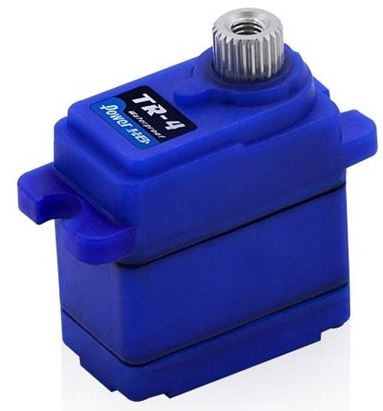

Power HD TR-4 Metal Gear Servo

Power HD Servo HD TR-4 Waterproof Metal Gears - for TRX-4

Having compatibility with high voltage 6V-8.4V, at 7.4V input the servo pulls up to 2.6kg-cm of torque at a speed of down to 0.10s. A long 35cm receiver wire and mini size of 22.5 x 12.5 x 24.0 mm ensures the servo is a direct fit in crawler TRAXXAS TRX-4. The servo TR-4 comes with 25T metal spline and special gaskets make it waterproof for go-everywhere capabilities.

SPECS:

Torque(4.8V): 1.8 kg-cm (25.0 oz/in)

Torque(6.0V): 2.2 kg-cm (30.6 oz/in)

Torque(7.4V): 2.6 kg-cm (36.1 oz/in)

Speed: 0.15 sec (4.8V) ? 0.12 sec (6.0V) ? 0.10 sec (7.4V)

Operating Voltage?4.8 ~ 7.4 DC Volts

Weight: 16.0 g (0.56 oz)

Gear Type: Copper and Alu

Operating Temperature: -20?~60?

Working frequence?1520μs / 50hz

Size?22.5 x 12.5 x 24.0 mm ( 0.89 x 0.49 x 0.94 in)
