Savox 7kg 0.035sec Brushless Metal Gear Servo

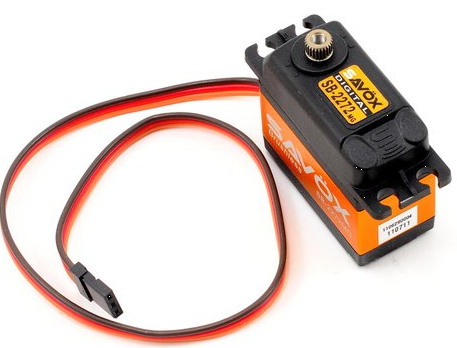

This is the Savox SB-2272SG "Lightning Speed" Brushless, Metal Gear, High Voltage, Digital Servo.
FEATURES:
Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
Super light-weight.
Brushless motor provides extremely high speed, incredible efficiency, and low power consumption.
Extremely strong metal gears ensure long-life and durability.
The full aluminum case design not only looks good but also allows for cooler and smoother operating temps.
Totally green – from materials to production, these servos are environmentally friendly.
Ideal for 1/10 trucks and buggies, as well as every control surface for giant scale aircraft and 700 class heli rudder applications.
*NOTE: Certain combinations of receiver and ESC have been found to cause "Brown Out" issues when combined with Savox servos. An external BEC, or BEC stabilizing receiver capacitor may be needed for efficient, glitch free operation in low voltage electric applications.
SPECS:
Dimensions: 40.3x20.2x38.7mm
Weight: 66g
Speed:
@ 4.8V: .05 sec/60
@ 6.0V: .045 sec/60
@ 7.4V: .032 sec/60
Torque:
@ 4.8V: 41.7 oz-in
@ 6.0V: 69.4 oz-in
@ 7.4V: 97.2 oz-in
Gear: Metal
Bearing: 2BB
Case: Full Aluminum
Output Shaft: 25 Tooth Spline
