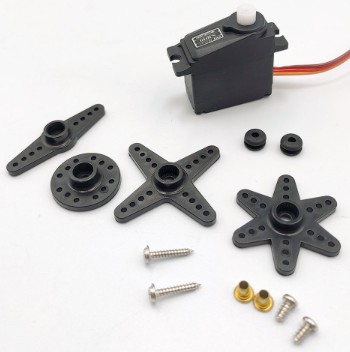

CYS 17g Digital Plastic Gear Servo

SPECS:

17g Plastic Gear Digital Servo

Size: 37.6*13.3*33.8mm

Weight: 20(+/-1)g (0.71 oz)

Operating Voltage: 4.8-6.0V

Control System Required Pulse: (+)Pulse Width Control 1500usec Neutral

Operating Temperature Range: -10 to +50 Celcius degree

Operating Speed at no load:

(4.8V) 0.13sec/60 degree

(6.0V) 0.09sec/60 degree

Stall Torque:

(4.8V) 2.5kg.cm

(6.0V) 3.0kg.cm

Operating Angle: 45deg.one side pulse traveling 500 usec

360 Modifiable: No

Direction: Anticlockwise/Pulse Traveling 1000-2000usec

Current Drain:

(4.8V idle /no-load) 20mA/80mA

(6.0V idle /no-load) 20mA/80mA

Stall Current: 1.2A/1.5A

Dead Band Width: 3usec

Motor Type: Iron core

Bearing Type: None

Horn gear spline: 25T

Gear Type: Plastic

JR plug wire length: 180mm

Wire info:

Brown/Black = Negative

Red = Positive

Orange/White = Signal

IMPORTANT NOTES:

JR plug and 18cm connector wire.

Refer to the figure when installing the servo accessories.

For engine powered airplanes and boats, rubber must be used to reduce vibration.

Please choose correct model for your application.

Torque over-loaded will damage the servo's mechanism.

Keep the servo clean and away from dust, corrosive gas and humid air.
